جزئیات محصول:
پرداخت:
|
| مدل موتور: | کامینز، NTA855-G7 | نام تجاری آلترناتور: | فارادی، FDI4LP |
|---|---|---|---|
| فرکانس: | 50 هرتز | توان اولیه (کیلووات بر کیلووات): | 300 / 375 |
| توان آماده به کار (kw/kva): | 330 / 412.5 | ولتاژ نامی:: | 400 / 230 |
| نوع خروجی: | AC سه فاز | برند ماژول کنترل: | Smartgen، Deepsea، Comap |
| نوع باز (L*W*H) (mm): | 3035*1000*1750 | وزن باز نوع (کیلوگرم): | 3200 |
| برجسته کردن: | Emergency Generator Set,power generating sets,power generating sets |
||

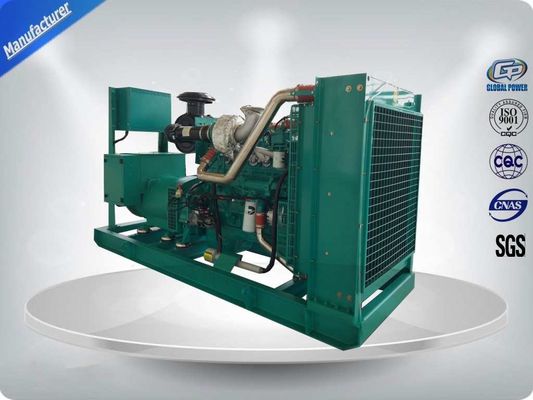

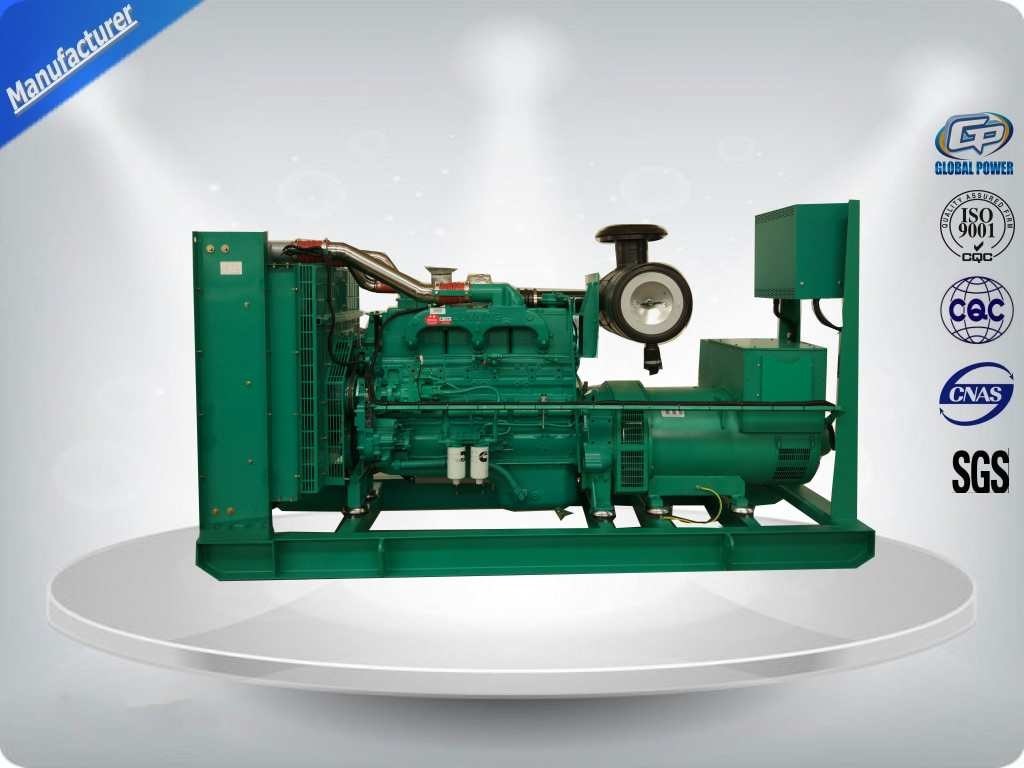

Model: GP C300-2
Applications:
Home, Buildings, Hospitals, Train station,
Bank, Telecom, Mining, Military, Outdoor projects, etc.
Features and benefits
Diesel Generator GPC300-2 (three phase)
| Prime Power (kw/kva) | 300/375 |
| Standby Power (kw/kva) | 330/413 |
| Rated Voltage (V) | 400/230 |
| Voltage Recovery Time | ≤1S |
| Rated Current (A) | 541 |
| Rated Frequency (Hz) | 50 |
| Frequency Recovery Time | ≤5S |
| Wave Distortion | ≤5%, sine wave |
| Running Noise db(A)/7m(Silent type) | 75 |
| Battery capacity (V-Ah) | 12V 100Ah |
| Open Type-Dimension (L*W*H) (mm) | 3035*1000*1750 |
| Open Type-Weight (kg) | 3200 |
| Soundproof Type- Dimension (L*W*H) (mm) | / |
| Soundproof Type-Weight (kg) | / |
| Fuel Tank Capacity(L) | 600 |
| Continuous Running Time(hr.) | 8 |
Engine specifications
Engine
Main features:
Technical data
Model NTA855-G7
| Engine brand | Cummins |
| Output Power (kw) | 343 |
| Cylinder No. & Config. | 6, in-line |
| Combustion System | direct injection |
| Compression Ratio | 14.0:1 |
| Displacement (L) | 14 |
| Bore X Stroke (mm) | 140*152 |
| Engine Speed (r/min) | 1500 |
| Speed Governing | Electronic |
| Starting System | 24V DC Electric |
| Filter System | Dry oil filter/Fuel filter/Oil filter |
| Cooling system | Water-cooled |
| Coolant capacity (L) | 63.9 |
| Fuel Consump. (g/kw·h) | 206.7 |
| Oil Capacity (L) | 37 |
Alternator specifications
Alternator
Main features:
Technical data
Model FDI4LP
| Alternator brand | Faraday |
| Rated Power (kw) | 400 |
| Excitation System | Brushless, self-exciting |
| Voltage Regulation Mode | AVR |
| Connection Type | 3phase,4wires,”Y” connection |
| Pole No. | 4 |
| Rotation Speed (r/min) | 1500 |
| Temperature Rise (℃) | 125 |
| Insulation class | H |
| Voltage Regulation (0 load) | ≥95%～105% |
| Voltage accuracy | ≤±1% |
| Protection Grade | IP23 |
| Telephone Influence Factor | TIF＜50 |
| Harmonic Coefficient | THF＜2% |
AMF25 controller
Main features:
1.Using microprocessor as a core, graphics LCD with big screen and backlight, key touch for operation
2. Security password-protected programming levels
3. All parameters use digital modulation, with higher reliability and stability
4. Built-in speed/frequency detecting units can accurately judge the states such as crank success and over speed
5. Power supply range is wide, accommodating to different starting battery voltage environment
6. Built-in watch dog can never be dead halt, ensuring smooth program execution
Modular configuration design, inserted type connection terminals, flush type installation, compact structure, easy installation
