Safey Frame Low Noise Diesel Generator Set 683kva With Original Japan Mitsubishi Engine

تصویر بزرگ : Safey Frame Low Noise Diesel Generator Set 683kva With Original Japan Mitsubishi Engine

جزئیات محصول:

محل منبع:	جیانگ سو، چین
نام تجاری:	Global Power
گواهی:	CE / ISO
شماره مدل:	GPM550 - میتسوبیشی

پرداخت:

مقدار حداقل تعداد سفارش:	1 مجموعه
قیمت:	negotiable
جزئیات بسته بندی:	بسته بندی کیس فوم یا تخته سه لا
زمان تحویل:	25 روز پس از دریافت پیش پرداخت
قابلیت ارائه:	2000 مجموعه در سال

مخاطب

توضیحات محصول جزئیات

مارک موتور:	پرکینز، کامینز، دوسان، دوتز، ام تی یو، ریکاردو، ایسوزو	توان نامی (کیلووات):	550 کیلو وات
ولتاژ (V):	400 / 230 V	حاکم بر سرعت:	الکترونیکی / مکانیکی
سرعت موتور (r/min):	1500/1800 دور در دقیقه	سیستم خنک کننده:	آب خنک شده
دیگران:	ATS، مخزن سوخت ... موجود است	برندهای آلترناتور:	مکالت، استمفورد، قدرت جهانی
برجسته کردن:	marine diesel genset, Emergency Generator Set , Emergency Generator Set

Safey Frame Low Noise Diesel Generator Set 683kva With Original Japan Mitsubishi Engine

pecifications

diesel generator
famous brand generator
low inertia oil
reasonable price with best quality
get CE, ISO certificate

Technical Specifications :

Genset	Voltage Recovery Time		≤1S
	Rated Current (A)		504
	Rated Frequency (Hz)		50
	Frequency Recovery Time		≤5S
	Running Noise db(A)/7m(Silent type)		75
	Battery capacity (V-Ah)		24V 100Ah
	Fuel Tank Capacity(L)		/
Engine	Cylinder No. & Config.	6, in-line
	Combustion System	direct injection
	Compression Ratio	16.3:1
	Displacement (L)	12.5
	Bore X Stroke (mm)	130*157
	Engine Speed (r/min)	1500
	Speed Governing	Electronic
	Starting System	24V DC Electric
	Filter System	Dry oil filter/Fuel filter/Oil filter
	Cooling system	Water-cooled
Alternator	Alternator brand	Stamford, Mecc-alte,Faraday
	Excitation System	Brushless, self-exciting
	Voltage Regulation Mode	AVR
	Connection Type	3phase,4wires,”Y” connection
	Pole No.	4
	Rotation Speed (r/min)	1500
	Temperature Rise (℃)	125
	Insulation class	H
	Voltage Regulation (0 load)	≥95%～105%
	Protection Grade	IP23

Competitive service:

1) More than 15 years advanced production experience.

2) As OEM factory, we have obvious competitive in price and leading times.

3) Provide debugging and maintenance service to you.
4) Professional 8 Hours testing for Generator before shipment.

5) 1000 hours warranty on the spare parts free provide & technical support in machine life.

Technical data :

Photos :

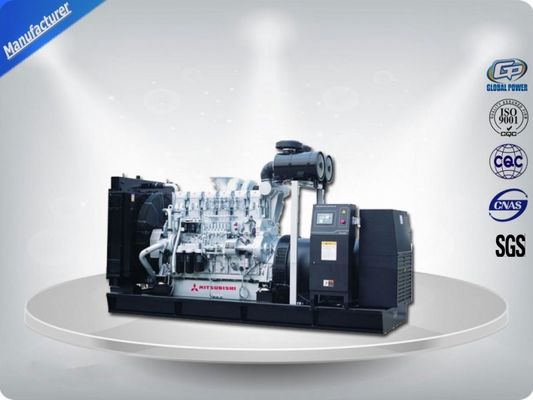

Safey Frame Low Noise Diesel Generator Set 683kva With Original Japan Mitsubishi Engine

Generator soundproof/Silent and canopy

Excellent ventilation
Black finish stainless steel locks and hinges
Zinc plated or stainless steel fasteners
Body made from steel components treated with polyester powder coating
Two large doors on either side
Radiator fill access plate
Fully guarded cooling fan and battery charging alternator
Fuel fill and battery access via lockable access doors
Emergency stop button on canopy exterior
Lube oil drain and radiator drain to exterior
Control panel viewing window
Lifting points on base frame

Warranty and Maintenance:

Guarantee Period: One year or 1000 running hours whichever comes first.
During the guarantee period, the spare-parts will be sent through your shipping agency in China.
Spare-parts can also be sent by air express.
24 hours service hotline is available for customers.

Our service :
1)Before-sale Service:
we provide detailed product technical parameters for equipment choosing and system designing

2)Service quality assurance:
our sale staffs are all experience and professional,who can provide the most proper system design and optimized equipment for the customers.

3)After sale maintenance service:
We create files for end user and provide them follow-up service,regular return visit and permanent
maintenance.

4)Spare parts supply:
We provide all kinds of spare parts and technical support.

5)Main overhaul or maintenance service:
We provide perennial major overhaul and maintenance service.
