جزئیات محصول:
پرداخت:
|
| توان اولیه (kva): | 4.5 / 5 | توان آماده به کار (kw/kva): | 5 / 5.5 |
|---|---|---|---|
| ولتاژ (V): | 220 | ولتاژ نامی (V): | 400/230 |
| پیکربندی: | تک فاز، سه حلقه | بسته: | بسته بندی فوم پلاستیکی یا کیس تخته سه لا |
| سطح نویز (7m)dB(A): | 97 | رنگ: | سفارشی |
| برجسته کردن: | quiet portable generator,portable backup generator,portable backup generator |
||
Portable Generator Set For Home / Office Silent / Open Diesel Generator Set 1.7KVA - 2.6KVA P50HZ / 60HZ
Features and Benefits
1. Powerful Lees four-stroke engine
Lees commercial-grade OHV engines are reliable, easy-to-start and incredibly rugged.
2. Reliable and stable output
Applied the improved AVR (automatic voltage regulator), which not only
can smooth the output but also provide reasonable protection against
the overload of the whole set
3. Competitive economic operation
The high efficiency combustion system is designed to reduce the
consumption and operation cost
4. Qualified breaker, electronic elements
Ensuring high quality of generator, protect the generator from being overload
5. Compact design
Provides unparalleled power to weight ratio
6. Large steel fuel tank
For durability and extended running time
Technical Specifications:
|
Frequency(Hz) |
50 |
60 |
|
|
Rated Output(kVA) |
4.5 |
5.0 |
|
|
Max Output(kVA) |
5.0 |
5.5 |
|
|
Voltage(V) |
220 |
220 |
|
|
Current(A) |
19.9 |
23 |
|
|
Configuration |
Single phase, three loops |
||
|
Factor |
1.0 |
||
|
Insulation Class |
B |
||
|
Pole |
2 |
||
|
Phase |
1 |
||
|
Excitation Mode |
Self-excitation & constant voltage(AVR) |
||
|
Panel type |
General panel |
||
|
output |
socket |
2pc single phase socket |
|
|
|
Connection Pole |
Without |
|
|
|
DC12V Output |
Connection pole output |
|
|
Dimension ((L *W*H) |
750*500*660 |
||
|
Dry weight(kg) |
100 |
||
|
Working assorting weight (Kg) |
105 |
||
|
Noise level(7m)dB(A) |
97 |
||
|
Frame type |
Open frame |
||
Engine
|
Model |
GP 186FA |
|
|
Engine type |
Vertical,4 stroke, Air cooled, direct injection |
|
|
Displacement(mL) |
418 |
|
|
Cylinder NO.-bore×stroke (mm) |
1-86×72 |
|
|
Rated power(kW) |
5.7 |
6.3 |
|
Rated rotation speed(r/min) |
3000 |
3600 |
|
Fuel consumption ( g/kW.h) |
275.1 |
281.5 |
|
Capacity of Fuel Tank (L) |
15 |
|
|
Starting System |
Electric starter |
|
|
Compression ratio |
19:1 |
|
|
Continuous working hours(hr.) |
8 |
|
Product superiority:
Our Service:
1. If you are interested in our products we sincerely invite you to take a visit of our factory when you are in China. We can drive to pick you up and visit our factory.
2. Suggest the best choice or referential suggestion based on customers’ information. Answer all questions about the product from customer.
3. Build customers’ profiles, follow-up service, make regular calls on customers.

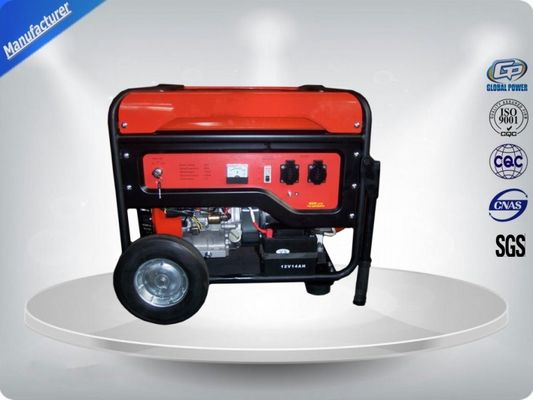

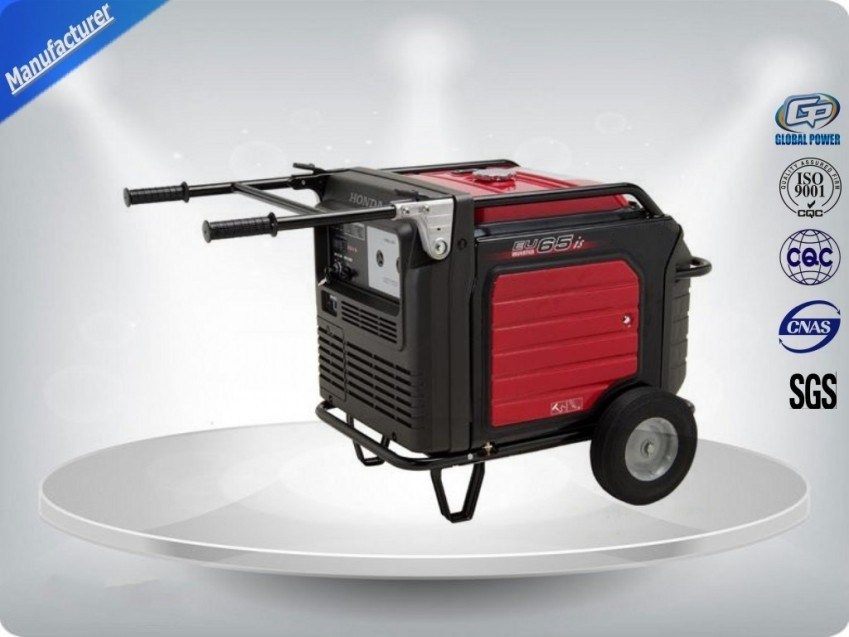

PHOTOS:
Portable Generator Set For Home / Office Silent / Open Diesel Generator Set 1.7KVA - 2.6KVA P50HZ / 60HZ
If you have interest , just contace me !
