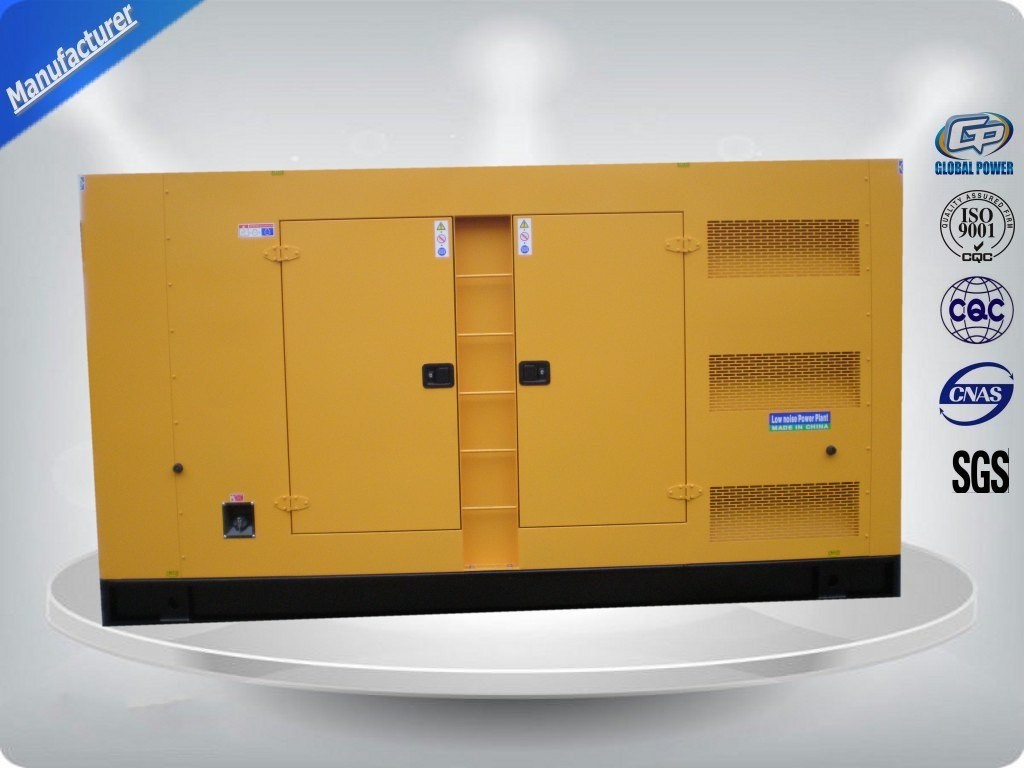

Soundproof Engine Generator Set 500KW Rating Power AC Three Phase

: تصویر بزرگ : Soundproof Engine Generator Set 500KW Rating Power AC Three Phase

جزئیات محصول:

محل منبع:	جیانگ سو، چین
نام تجاری:	Global Power
گواهی:	CCS / ISO
شماره مدل:	جی پی C500

پرداخت:

مقدار حداقل تعداد سفارش:	2 ست
قیمت:	Negociable
جزئیات بسته بندی:	کیس فوم یا تخته سه لا پلاستیکی
زمان تحویل:	30-35 روز پس از دریافت پیش پرداخت

مخاطب

توضیحات محصول جزئیات

امتیاز:	500 کیلو وات	سیستم خنک کننده:	خنک کننده آب دریا، مبدل حرارتی
نوع خروجی:	AC سه فاز	سرعت و فرکانس:	1500 در دقیقه، 50 هرتز / 18000 دور در دقیقه، 60 هرتز
شرایط استفاده:	کاربری زمین	استفاده:	منبع تغذیه آماده به کار
حالت تحریک:	محرک چرخشی AC	نوع موتور:	درون خطی
سکته:	چهار چرخه	روش نصب:	ثابت شد
برجسته کردن:	marine diesel genset, power generating sets , power generating sets

soundproof diesel generators 500KW rating power AC three Phase diesel generaotor set

About the Warranty Clain:
1.Generator engine is covered by global service system. If there are any fault on engine that you can call local service station for global warranty service.
2. For the other parts of genset, since 98% of the faults are on engine. for the other parts, we can provide warranty service.

Features Diesel Generator

1) Universal design and manufacture
2) Most widely used around the world
3) With most service terminals
4) Engineers are familiar with Cummins powered gensets
5) You could find spare-parts very easy

Prime power (KVA)	Standby power (kw)	Engine model	Fuel consumption (L/H)	Open Genset Dimension (mm)
565/625	450/500	KTAA19-G5	113	3345x1550x2186
588/650	470/520	KTAA19-G6	118.5	3620x1550x2230
----/688	----/550	KTAA19-G6A	127.8	3460x1550x2232
----/688	----/550	KTAA19-G7	127.8	3716x1550x2285

Prime power (KVA)	Standby power (kw)	Engine model	Fuel consumption (L/H)	Open Genset Dimension (mm)
500/550	625/688	KT38-G	140	3900x1800x2350
650/715	520/572	QSK19-G3	143	3900x1550x2350
725/798	580/638	KTA38-GA	162.5	4044x1800x2345
750/825	600/660	KTA38-G2	167	3716x1550x2285

Cummins Marine Diesel Generator Sets are hot cakes in the market and used in more than 150 countries all over the world.
Cummins Marine Diesel Generator Sets have feasures of compact structure, full power ranging, low fuel consumptions of marine engines, low noise, reliable marine generating set performing and long life span.
Cummins Marine Diesel Generator Sets are originally with Cummins global warranty net, namely you can get services and spare parts easily from Cummins sales agency or service centres all over the world.
Can provide certificates of Marine Products, conforming to IACS (International Association of Classification Societies)

CUMMINS Models

Specification:

1. Specification of genset
Rated frequency(HZ)				50
Rated speed				1500rpm
Power factor				0.8(lagging)
Dimensions(mm) (L×W×H)				22508501400
Genset weight(kg)				1500
2. Specification of diesel engine
Cylinder arrangement				Vertical in-line
Cycle				Four stroke
Aspiration				Turbocharged
Bore×Stroke (mm×mm)				114 x 135
Displacement (Liter)				8.3
Rated speed				1500rpm
Starting Method				DC24V electrical starting
Speed Governor				Electronic
Cooling System				By sea water heat exchanger
Fuel Consumption				212g/kw.h
3. Specification of alternator
Number of Phase				3
Connecting Type				3 Phase and 4 Wires
Number of Bearing				1
Protection Grade				IP23
Exciter Type				Brushless ,Self-exciting, AVR automatic voltage regulating,100% Copper winding wire
Insulation Class				H

Soundproof Engine Generator Set 500KW Rating Power AC Three Phase
Supply Scope:
Complete Cummins Marine Diesel Generator Sets including marine diesel engine, alternator, heat exchanger+water pump or radiator, standard control system, circuit breaker, absorber, filters, testing report, marine class certificate, user books and other accessories etc..

Global Power Service:

1. In manufacturing of power generators, GLOBAL POWER is able to draw on an experience
    of more than 10 years. Our total production capacity is about 20,000 units per year.
2. The power generator sets are designed for continuous power supply and have proved 10,000
    fold around the world in various applications on every continent.
3. Except standard products, we also provide customized design service for you, design generator
    sets as per your specific requirements.
4. We provide professional & in time service after sale.
