شرکت فناوری قدرت جهانی وو شی، با مسئولیت محدود
کاربر اول، صداقت محور؛ ایجاد برند GP با کیفیت، کسب اعتبار با خدمات.
جزئیات محصول:
پرداخت:
|
| مدل موتور: | GP 192F | خروجی نامی (kVA): | 7.5 / 8.5 کیلو وات |
|---|---|---|---|
| ابعاد کلی: | 750*500*660 | پیکربندی: | تک فاز، سه حلقه |
| نوع قاب: | قاب را باز کنید | نوع موتور: | تک سیلندر، 4 زمانه، هوا خنک اجباری |
| سطح نویز (7m)dB(A): | 97 | ||
| برجسته کردن: | single phase generator, single phase genset,single phase genset |
||

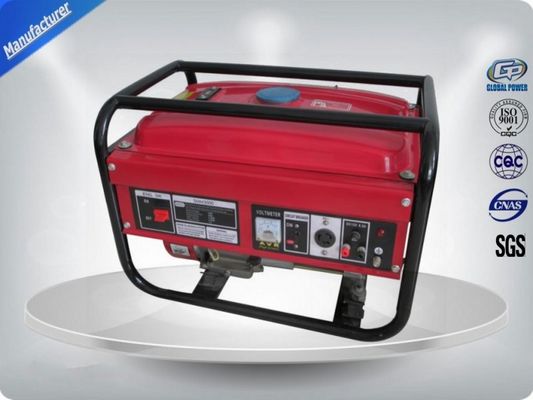

Mini Gasoline Generator Set Honda Powered By 7.5 / 8.5KW Portable Silent With Electric Starter
Specifications
1.OHV engine Chinese 3kva gasoline generator set
2.hand-held and low noise
3.suitable for family use
4.small volume
Generator
|
Frequency(Hz) |
50 |
60 |
|
|
Rated Output(kVA) |
7.5 |
8.3 |
|
|
Max Output(kVA) |
8.5 |
10.3 |
|
|
Voltage(V) |
115/230 |
120/240 |
|
|
Current(A) |
65.2/32.6 |
69.2/34.6 |
|
|
Configuration |
|
||
|
Factor |
Cos0.8 |
||
|
Insulation Class |
B |
||
|
Pole |
2 |
||
|
Phase |
|
||
|
Excitation Mode |
Self-excitation & constant voltage(AVR) |
||
|
Panel type |
Intelligent panel |
||
|
output |
socket |
2pc single phase socket |
|
|
Connection Pole |
Without |
||
|
DC12V Output |
Connection pole output |
||
|
Dimension (L *W*H) |
750*500*660 |
||
|
Dry weight(kg) |
105 |
||
|
Working assorting weight (Kg) |
110 |
||
|
Noise level(7m)dB(A) |
97 |
||
|
Frame type |
Open frame |
||
Our advantages:
1. Powerful Lees four-stroke engine
Lees commercial-grade OHV engines are reliable, easy-to-start and incredibly rugged.
2. Reliable and stable output
Applied the improved AVR (automatic voltage regulator), which not only
can smooth the output but also provide reasonable protection against
the overload of the whole set
3. Competitive economic operation
The high efficiency combustion system is designed to reduce the
consumption and operation cost
4. Qualified breaker, electronic elements
Ensuring high quality of generator, protect the generator from being overload
5. Compact design
Provides unparalleled power to weight ratio
6. Large steel fuel tank
For durability and extended running time
inspection
After sale service:
1) Quick response to customer's complains in half hour from get customers' emails or calls.
2) Giving correct solve solutions in 1 hour by our 20 years experience excellent service team.
3) Offering 24 hours hot line service and remote technical diagnosing and supporting.
4) Offering engineers to your local site to solve problems if urgent needed.
5) Branding generator set customers can enjoy our good service forever.
