300kva Perkins Open Cummins Diesel Generator Set Marine Diesel Genset

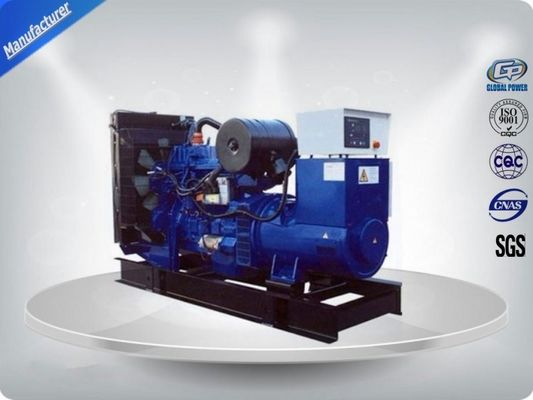

تصویر بزرگ : 300kva Perkins Open Cummins Diesel Generator Set Marine Diesel Genset

جزئیات محصول:

محل منبع:	جیانگ سو، چین
نام تجاری:	Perkins
گواهی:	OEM / ISO
شماره مدل:	GP P240

پرداخت:

مقدار حداقل تعداد سفارش:	1 مجموعه
قیمت:	negotiable
جزئیات بسته بندی:	بسته بندی کیس فوم یا تخته سه لا
زمان تحویل:	25 روز پس از دریافت پیش پرداخت
قابلیت ارائه:	2000 مجموعه در سال

مخاطب

توضیحات محصول جزئیات

برند موتور::	پرکینز	توان خروجی (کیلووات):	287
برند آلترناتور::	استمفورد / میکالت / کپی استمفورد	مدل موتور::	1606A-E93TAG5
فرکانس (هرتز):	50	نوع ژنراتور::	باز / خاموش
جریان نامی (A):	433	نوع عایق صدا - ابعاد (LWH) (mm):	320011501900
بسته:	کیس فوم یا تخته سه لا پلاستیکی	ظرفیت مخزن سوخت (L):	600
برجسته کردن:	Emergency Generator Set, power generating sets , power generating sets

300kva Perkins Open Three Phase Perkins Generator Set With Stamford Alternator

Basic Specification:

1. Engine brand, Perkins.

2. Alternator brand, Meccalte, Stanform, GP...etc

3. Direct injection internal combustion engine

4. AC synchronous generator ( single bearing)

5. Cooling way, radiator with fan & water tank

6. Open type, closed type ( with sound proof canopy, trailer, container)

7. Silent / trailer diesel generator set, containerized diesel generator set, vechile mounted diesel generator set

8. Anti-vibration isolaters

9. Brushless 3 phase

10.Integral guel tank ( 8 hours)

11. sound proof, weather proof canopy is optional ( both open type and closed type can be made)

12.50/60hz

13. Atomatic alarm system

14. Insulation, class H

Applications:

Home, Buildings, Hospitals, Train station,

Bank, Telecom, Mining, Military, Outdoor projects, etc.

Diesel Generator GPP240 (three phase)

Prime Power (kw/kva)	240/300
Standby Power (kw/kva)	264/330
Rated Voltage (V)	400/230
Voltage Recovery Time	≤1S
Rated Current (A)	433
Rated Frequency (Hz)	50
Frequency Recovery Time	≤5S
Wave Distortion	≤5%, sine wave
Running Noise db(A)/7m(Silent type)	75
Battery capacity (V-Ah)	24V 100Ah
Open Type-Dimension (LWH) (mm)	320011501900
Open Type-Weight (kg)	2735
Soundproof Type- Dimension (LWH) (mm)	410015002250
Soundproof Type-Weight (kg)	6385
Fuel Tank Capacity(L)	600
Continuous Running Time(hr.)	8

Engine specifications:

1.Main features:

Six-cylinder, water-cooled, in-line diesel engine
Efficient fuel system for max power output and durability
Large-capacity air cleaner
Cost effective, fuel efficient and reliable performance
Functional engine with compact structure
Excellent after-sales service and sufficient spare parts supplying
Easy installation and ready access for routine maintenance

2.Technical data

Model 1606A-E93TAG5

Engine brand	Perkins
Output Power (kw)	287
Cylinder No. & Config.	6, in-line
Combustion System	direct injection
Compression Ratio
Displacement (L)	9.3
Bore X Stroke (mm)	117*146
Engine Speed (r/min)	1500
Speed Governing	Electronic
Starting System	24V DC Electric
Filter System	Dry oil filter/Fuel filter/Oil filter
Cooling system	Water-cooled
Coolant capacity (L)	45
Fuel Consump. (g/kw·h)	208
Oil Capacity (L)	36

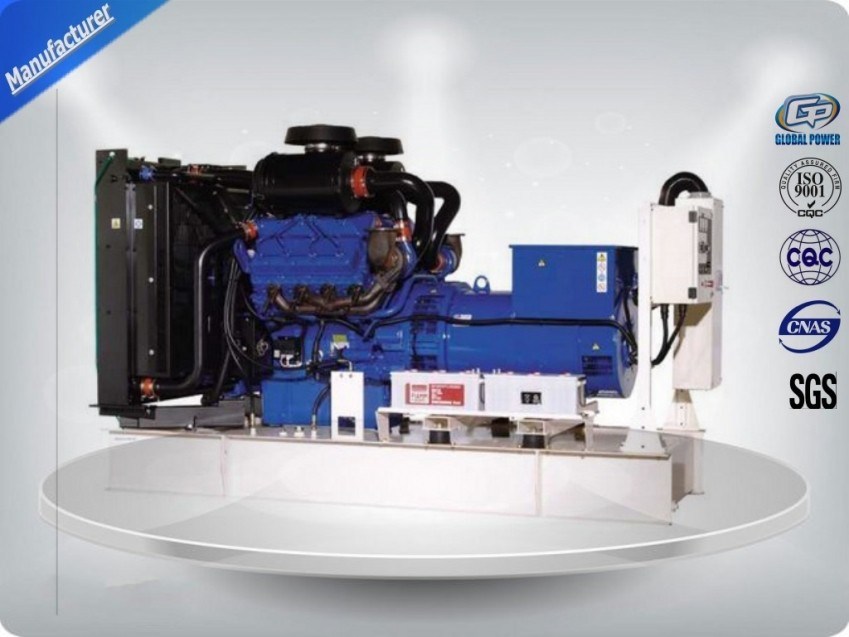

Product Picture:

300kva Perkins Open Cummins Diesel Generator Set Marine Diesel Genset

Features and benefits

Tightly structure, excellent design and craft
Excellent cooling system, reliable performance under the harshest conditions (ambient temperature up to 40℃ and altitudes up to 1000m)
Self-diagnostic capability simplifies troubleshooting
LCD display shows system status and setup information
Automatic voltage regulator protects your sensitive electronics from harmonic distortion and unstable power quality
Soundproof type: Very quite running–75dB(A)at 23ft(7m) at normal load.
Enclosed muffler for added quietness
Service and maintenance accessible through easy-latch side service door
