شرکت فناوری قدرت جهانی وو شی، با مسئولیت محدود
کاربر اول، صداقت محور؛ ایجاد برند GP با کیفیت، کسب اعتبار با خدمات.
جزئیات محصول:
پرداخت:
|
| برند موتور:: | پرکینز | توان خروجی (کیلووات): | 239 |
|---|---|---|---|
| برند آلترناتور:: | استمفورد / میکالت / کپی استمفورد | مدل موتور:: | 1306C-E87TAG6 |
| فرکانس (هرتز): | 50 | نوع ژنراتور:: | باز / خاموش |
| نام تجاری ماژول کنترل: | Comap، SmartGen، DeepSea | نوع عایق صدا - ابعاد (L*W*H) (mm): | 3400*1400*2150 |
| بسته: | کیس فوم یا تخته سه لا پلاستیکی | ظرفیت مخزن سوخت (L): | 600 |
| برجسته کردن: | marine diesel genset, Emergency Generator Set,Emergency Generator Set |
||
Open Three Phase Industrial Generator Set With Stamford Alternator 200kw Perkins
Basic Specification:
1. Engine brand, Perkins.
2. Alternator brand, Meccalte, Stanform, GP...etc
3. Direct injection internal combustion engine
4. AC synchronous generator ( single bearing)
5. Cooling way, radiator with fan & water tank
6. Open type, closed type ( with sound proof canopy, trailer, container)
7. Silent / trailer diesel generator set, containerized diesel generator set, vechile mounted diesel generator set
8. Anti-vibration isolaters
9. Brushless 3 phase
10.Integral guel tank ( 8 hours)
11. sound proof, weather proof canopy is optional ( both open type and closed type can be made)
12.50/60hz
13. Atomatic alarm system
14. Insulation, class H
Diesel Generator GPP200 (three phase)
|
Prime Power (kw/kva) |
200/250 |
|
Standby Power (kw/kva) |
220/275 |
|
Rated Voltage (V) |
400/230 |
|
Voltage Recovery Time |
≤1S |
|
Rated Current (A) |
361 |
|
Rated Frequency (Hz) |
50 |
|
Frequency Recovery Time |
≤5S |
|
Wave Distortion |
≤5%, sine wave |
|
Running Noise db(A)/7m(Silent type) |
75 |
|
Battery capacity (V-Ah) |
24V 100Ah |
|
Open Type-Dimension (L*W*H) (mm) |
2600*900*1570 |
|
Open Type-Weight (kg) |
1950 |
|
Soundproof Type- Dimension (L*W*H) (mm) |
3400*1400*2150 |
|
Soundproof Type-Weight (kg) |
4750 |
|
Fuel Tank Capacity(L) |
600 |
|
Continuous Running Time(hr.) |
8 |
Engine specifications:
1.Main features:
2.Technical data
Model 1306C-E87TAG6
|
Engine brand |
Perkins |
|
Output Power (kw) |
239 |
|
Cylinder No. & Config. |
6, in-line |
|
Combustion System |
direct injection |
|
Compression Ratio |
16.9:1 |
|
Displacement (L) |
8.7 |
|
Bore X Stroke (mm) |
116.6*135.9 |
|
Engine Speed (r/min) |
1500 |
|
Speed Governing |
Electronic |
|
Starting System |
24V DC Electric |
|
Filter System |
Dry oil filter/Fuel filter/Oil filter |
|
Cooling system |
Water-cooled |
|
Coolant capacity (L) |
37.2 |
|
Fuel Consump. (g/kw·h) |
188 |
|
Oil Capacity (L) |
26.5 |

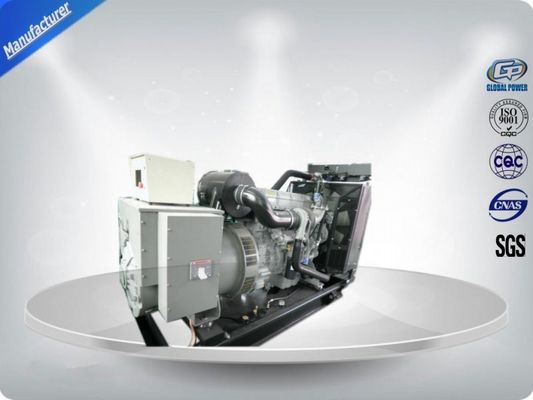

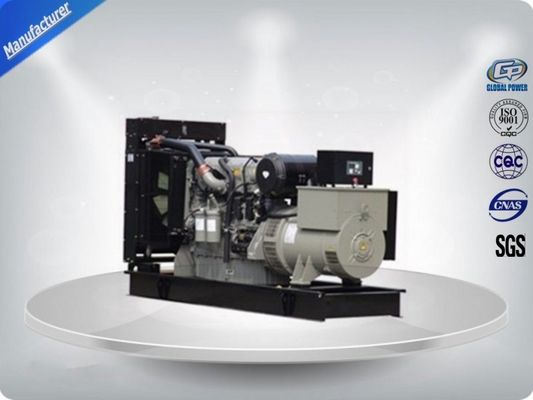

Product Picture:
Features and benefits
