جزئیات محصول:
پرداخت:
|
| کنترل کننده: | "ديپسي" ، "کامپ" ، "اسمارتجن". | مدل موتور: | 1104A-44TG2/81 |
|---|---|---|---|
| مارک موتور: | پرکینز | تایپ کنید: | بی صدا / باز |
| متناوب: | استمفورد / میکالت / کپی استمفورد | سرعت موتور (r/min): | 1500 |
| حاکم بر سرعت: | الکترونیکی | سیستم شروع: | برق 24 ولت DC |
| برجسته کردن: | marine diesel genset, Emergency Generator Set,Emergency Generator Set |
||
Stamford Alternator Perkins Genset Silent Generator Set , Three Phase Diesel Generator 1375kw
Technical Specifications :
|
Genset |
Prime Power (kw/kva) |
60 / 75 |
|
|
Standby Power (kw/kva) |
66 / 83 |
||
|
Voltage Recovery Time |
≤1S |
||
|
Rated Current (A) |
108 |
||
|
Rated Frequency (Hz) |
50 |
||
|
Frequency Recovery Time |
≤5S |
||
|
Running Noise db(A)/7m(Silent type) |
75 |
||
|
Battery capacity (V-Ah) |
12V 100Ah |
||
|
Fuel Tank Capacity(L) |
180 |
||
|
Engine |
Engine brand |
Perkins |
|
|
Output Power (kw) |
81 |
||
|
Cylinder No. & Config. |
4, in-line |
||
|
Combustion System |
direct injection |
||
|
Compression Ratio |
17.25:1 |
||
|
Displacement (L) |
4.4 |
||
|
Bore X Stroke (mm) |
105*127 |
||
|
Engine Speed (r/min) |
1500 |
||
|
Speed Governing |
Electronic |
||
|
Starting System |
12V DC Electric |
||
|
Filter System |
Dry oil filter/Fuel filter/Oil filter |
||
|
Cooling system |
Water-cooled |
||
|
Alternator |
Alternator brand |
Stamford, Mecc-alte,Faraday |
|
|
Excitation System |
Brushless, self-exciting |
||
|
Voltage Regulation Mode |
AVR |
||
|
Connection Type |
3phase,4wires,”Y” connection |
||
|
Pole No. |
4 |
||
|
Rotation Speed (r/min) |
1500 |
||
|
Temperature Rise (℃) |
125 |
||
|
Insulation class |
H |
||
|
Voltage Regulation (0 load) |
≥95%~105% |
||
|
Protection Grade |
IP23 |
||

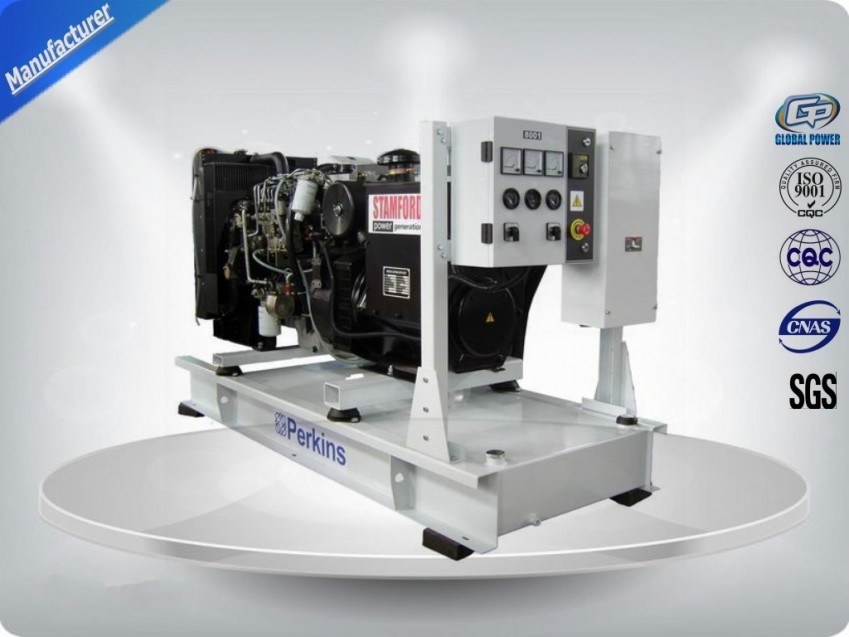

Our Picture :
![]()
![]()

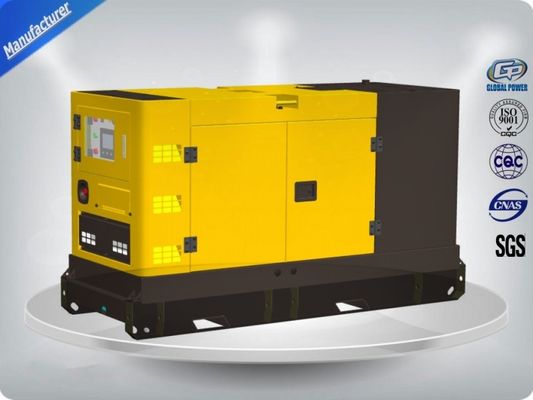

Generator soundproof/Silent and canopy
