Movable Three Phase Trailer Mounted Generator Electronic Starting 200-500Kw 600Kva

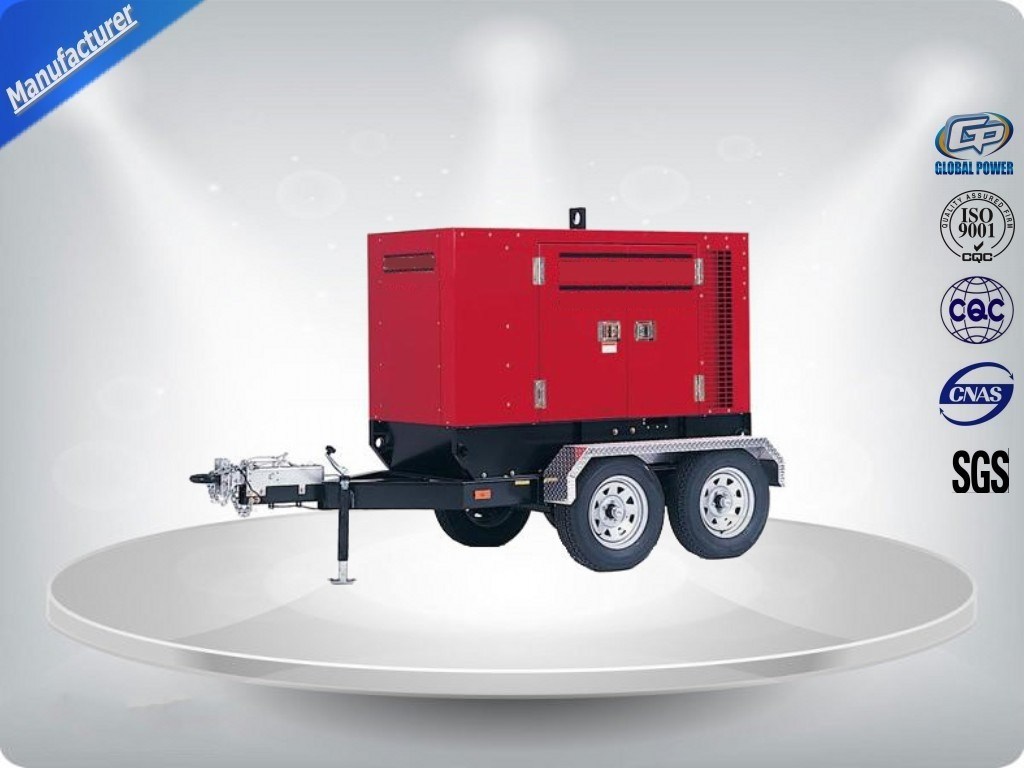

تصویر بزرگ : Movable Three Phase Trailer Mounted Generator Electronic Starting 200-500Kw 600Kva

جزئیات محصول:

محل منبع:	جیانگ سو، چین
نام تجاری:	Global Power
گواهی:	OEM / ISO
شماره مدل:	GP P480

پرداخت:

مقدار حداقل تعداد سفارش:	1 مجموعه
قیمت:	negotiable
جزئیات بسته بندی:	بسته بندی کیس فوم یا تخته سه لا
زمان تحویل:	25 روز پس از دریافت پیش پرداخت
قابلیت ارائه:	2000 مجموعه در سال

مخاطب

توضیحات محصول جزئیات

برند موتور::	پرکینز	توان خروجی (کیلووات):	574
برند آلترناتور::	استمفورد / میکالت / کپی استمفورد	مدل موتور::	2806C-E18TAG1A
فرکانس (هرتز):	50	سیستم شروع:	برق 24 ولت DC
نام تجاری ماژول کنترل:	Comap، SmartGen، DeepSea	نوع عایق صدا - ابعاد (LWH) (mm):	440015002300
عایق صدا نوع وزن (کیلوگرم):	9000	بسته:	کیس فوم یا تخته سه لا پلاستیکی
برجسته کردن:	trailer mounted diesel generator , Trailer Genset , Trailer Genset

Movable Three Phase Trailer Mounted Generator Electronic Starting 200-500Kw 600Kva

Trailer Feature:

Using leaf spring suspension structure node with high strength and rigidity, a reasonable choice.
Trailer genset plant has a good seal, security, easy to move, flexible operation, and with a hand brake, air brake, rear light systems, in line with the requirements of the road traffic.
Widely used in construction sites, road and railway construction sites and temporary sites electricity.

Diesel Generator GPP480 (three phase)

Prime Power (kw/kva)	480/600
Standby Power (kw/kva)	528/660
Rated Voltage (V)	400/230
Voltage Recovery Time	≤1S
Rated Current (A)	864
Rated Frequency (Hz)	50
Frequency Recovery Time	≤5S
Wave Distortion	≤5%, sine wave
Running Noise db(A)/7m(Silent type)	75
Battery capacity (V-Ah)	24V 100Ah
Open Type-Dimension (LWH) (mm)	340015502000
Open Type-Weight (kg)	3850
Soundproof Type- Dimension (LWH) (mm)	440015002300
Soundproof Type-Weight (kg)	9000
Fuel Tank Capacity(L)	800
Continuous Running Time(hr.)	8

Applications:

Home, Buildings, Hospitals, Train station,

Bank, Telecom, Mining, Military, Outdoor projects, etc.

Engine specifications:

1.Main features:

Six-cylinder, water-cooled, in-line diesel engine
Efficient fuel system for max power output and durability
Large-capacity air cleaner
Cost effective, fuel efficient and reliable performance
Functional engine with compact structure
Excellent after-sales service and sufficient spare parts supplying
Easy installation and ready access for routine maintenance

2.Technical data

Model 2806C-E18TAG1A

Engine brand	Perkins
Output Power (kw)	574
Cylinder No. & Config.	6, in-line
Combustion System	direct injection
Compression Ratio	14.5:1
Displacement (L)	18.1
Bore X Stroke (mm)	145*183
Engine Speed (r/min)	1500
Speed Governing	Electronic
Starting System	24V DC Electric
Filter System	Dry oil filter/Fuel filter/Oil filter
Cooling system	Water-cooled
Coolant capacity (L)	61
Fuel Consump. (g/kw·h)	203
Oil Capacity (L)	62

Product Picture:

Movable Three Phase Trailer Mounted Generator Electronic Starting 200-500Kw 600Kva

Features and benefits

Tightly structure, excellent design and craft
Excellent cooling system, reliable performance under the harshest conditions (ambient temperature up to 40℃ and altitudes up to 1000m)
Self-diagnostic capability simplifies troubleshooting
LCD display shows system status and setup information
Automatic voltage regulator protects your sensitive electronics from harmonic distortion and unstable power quality
Soundproof type: Very quite running–75dB(A)at 23ft(7m) at normal load.
Enclosed muffler for added quietness
Service and maintenance accessible through easy-latch side service door

Warranty and Maintenance:

Guarantee Period: One year or 1000 running hours whichever comes first.
During the guarantee period, the spare-parts will be sent through your shipping agency in China.
Spare-parts can also be sent by air express.
24 hours service hotline is available for customers.
