900Kva 3 Phase Trailer Mounted Diesel Generator Soundproof Eight - Cylinder

تصویر بزرگ : 900Kva 3 Phase Trailer Mounted Diesel Generator Soundproof Eight - Cylinder

جزئیات محصول:

محل منبع:	جیانگ سو، چین
نام تجاری:	Global Power
گواهی:	OEM / ISO
شماره مدل:	GP P720

پرداخت:

مقدار حداقل تعداد سفارش:	1 مجموعه
قیمت:	negotiable
جزئیات بسته بندی:	بسته بندی کیس فوم یا تخته سه لا
زمان تحویل:	25 روز پس از دریافت پیش پرداخت
قابلیت ارائه:	2000 مجموعه در سال

مخاطب

توضیحات محصول جزئیات

برند موتور::	پرکینز	توان خروجی (کیلووات):	767
برند آلترناتور::	Stamford / Meccalte / Copy Stamford	مدل موتور::	4008TAG1A
فرکانس (هرتز):	50	نوع ژنراتور::	ضد صدا
نام تجاری ماژول کنترل:	Comap، SmartGen، DeepSea	نوع خروجی:	AC سه فاز
بسته:	کیس فوم یا تخته سه لا پلاستیکی	ظرفیت مخزن سوخت (L):	1200
برجسته کردن:	trailer mounted diesel generator , Trailer Genset , Trailer Genset

900Kva 3 Phase Trailer Mounted Diesel Generator Soundproof Eight - Cylinder

Trailer Feature:

Using leaf spring suspension structure node with high strength and rigidity, a reasonable choice.
Trailer genset plant has a good seal, security, easy to move, flexible operation, and with a hand brake, air brake, rear light systems, in line with the requirements of the road traffic.
Widely used in construction sites, road and railway construction sites and temporary sites electricity.

Applications:

Home, Buildings, Hospitals, Train station,

Bank, Telecom, Mining, Military, Outdoor projects, etc.

Diesel Generator GPP720 (three phase)

Prime Power (kw/kva)	720/900
Standby Power (kw/kva)	800/1000
Rated Voltage (V)	400/230
Voltage Recovery Time	≤1S
Rated Current (A)	1296
Rated Frequency (Hz)	50
Frequency Recovery Time	≤5S
Wave Distortion	≤5%, sine wave
Running Noise db(A)/7m(Silent type)	75
Battery capacity (V-Ah)	24V 100Ah
Open Type-Dimension (LWH) (mm)	445016502402
Open Type-Weight (kg)	7550
Soundproof Type- Dimension (LWH) (mm)	20ft container
Soundproof Type-Weight (kg)	19350
Fuel Tank Capacity(L)	1200
Continuous Running Time(hr.)	6

Engine specifications:

1.Main features:

Eight-cylinder, water-cooled, in-line diesel engine
Efficient fuel system for max power output and durability
Large-capacity air cleaner
Cost effective, fuel efficient and reliable performance
Functional engine with compact structure
Excellent after-sales service and sufficient spare parts supplying
Easy installation and ready access for routine maintenance

2.Technical data

Model 4008TAG1A

Engine brand	Perkins
Output Power (kw)	767
Cylinder No. & Config.	8, in-line
Combustion System	direct injection
Compression Ratio	13.6:1
Displacement (L)	30.561
Bore X Stroke (mm)	160*190
Engine Speed (r/min)	1500
Speed Governing	Electronic
Starting System	24V DC Electric
Filter System	Dry oil filter/Fuel filter/Oil filter
Cooling system	Water-cooled
Coolant capacity (L)	143(Temp.) / 149(Trop.)
Fuel Consump. (g/kw·h)	206
Oil Capacity (L)	153

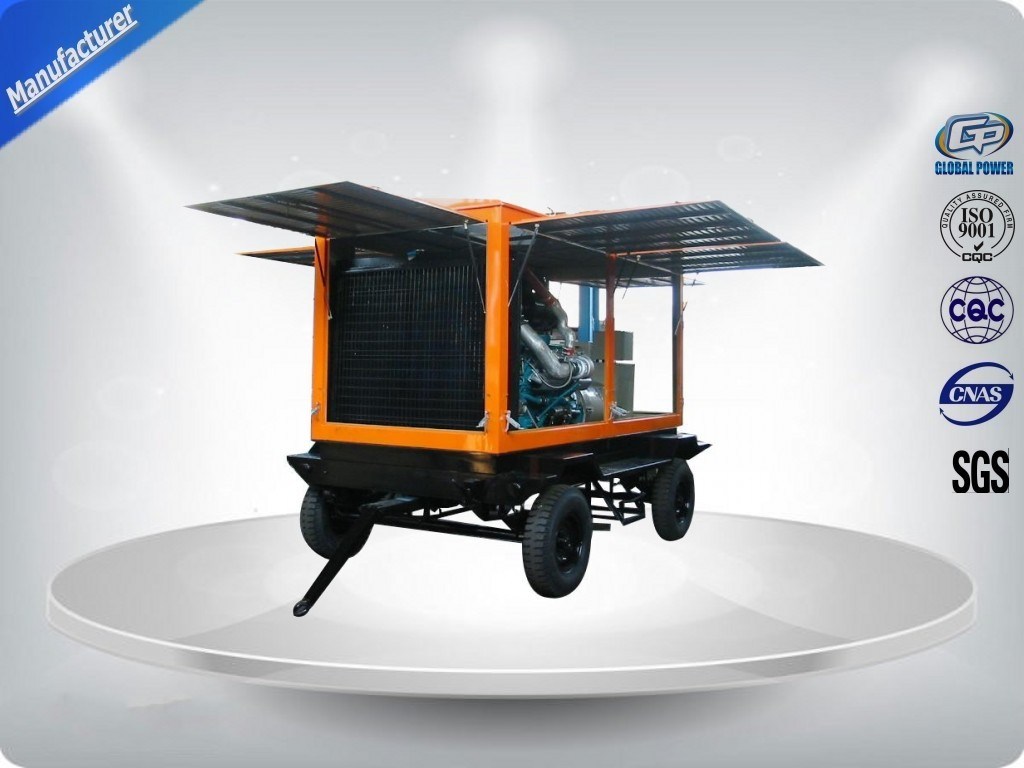

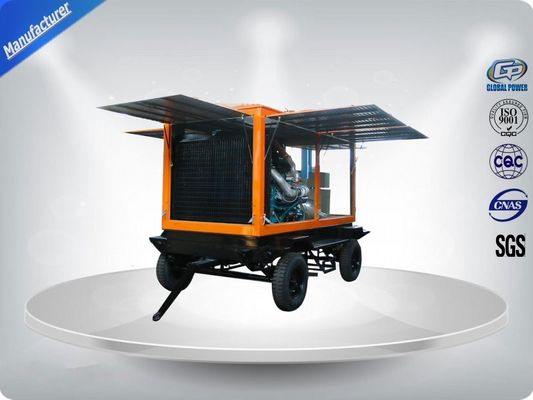

Product Picture:

900Kva 3 Phase Trailer Mounted Diesel Generator Soundproof Eight - Cylinder

Features and benefits

Tightly structure, excellent design and craft
Excellent cooling system, reliable performance under the harshest conditions (ambient temperature up to 40℃ and altitudes up to 1000m)
Self-diagnostic capability simplifies troubleshooting
LCD display shows system status and setup information
Automatic voltage regulator protects your sensitive electronics from harmonic distortion and unstable power quality
Soundproof type: Very quite running–75dB(A)at 23ft(7m) at normal load.
Enclosed muffler for added quietness
Service and maintenance accessible through easy-latch side service door
