Brushless Portable Mobile Generators Trailer Mounted Class H Insulation

تصویر بزرگ : Brushless Portable Mobile Generators Trailer Mounted Class H Insulation

جزئیات محصول:

محل منبع:	جیانگ سو، چین
نام تجاری:	Global Power
گواهی:	OEM / ISO
شماره مدل:	GP P200

پرداخت:

مقدار حداقل تعداد سفارش:	1 مجموعه
قیمت:	negotiable
جزئیات بسته بندی:	بسته بندی کیس فوم یا تخته سه لا
زمان تحویل:	25 روز پس از دریافت پیش پرداخت
قابلیت ارائه:	2000 مجموعه در سال

مخاطب

توضیحات محصول جزئیات

برند موتور::	پرکینز	توان خروجی (کیلووات):	239
برند آلترناتور::	استمفورد / میکالت / کپی استمفورد	مدل موتور::	1306C-E87TAG6
فرکانس (هرتز):	50	نوع ژنراتور::	تریلر
نام تجاری ماژول کنترل:	Comap، SmartGen، DeepSea	نوع عایق صدا - ابعاد (LWH) (mm):	340014002150
بسته:	کیس فوم یا تخته سه لا پلاستیکی	ظرفیت مخزن سوخت (L):	600
برجسته کردن:	Trailer Genset, mobile generators , mobile generators

Brushless Portable Mobile Generators Trailer Mounted Class H Insulation

Trailer Feature:

Using leaf spring suspension structure node with high strength and rigidity, a reasonable choice.
Trailer genset plant has a good seal, security, easy to move, flexible operation, and with a hand brake, air brake, rear light systems, in line with the requirements of the road traffic.
Widely used in construction sites, road and railway construction sites and temporary sites electricity.

Basic Specification:

1. Engine brand, Perkins.

2. Alternator brand, Marathon, Stanform, Engga...etc

3. Direct injection internal combustion engine

4. AC synchronous generator ( single bearing)

5. Cooling way, radiator with fan & water tank

6. Open type, closed type ( with sound proof canopy, trailer, container)

7. Silent / trailer diesel generator set, containerized diesel generator set, vechile mounted diesel generator set

8. Anti-vibration isolaters

9. Brushless 3 phase

10.Integral guel tank ( 8 hours)

11. sound proof, weather proof canopy is optional ( both open type and closed type can be made)

12. 50/60hz

13. Atomatic alarm system

14. Insulation, class H

Diesel Generator GPP200 (three phase)

Prime Power (kw/kva)	200/250
Standby Power (kw/kva)	220/275
Rated Voltage (V)	400/230
Voltage Recovery Time	≤1S
Rated Current (A)	361
Rated Frequency (Hz)	50
Frequency Recovery Time	≤5S
Wave Distortion	≤5%, sine wave
Running Noise db(A)/7m(Silent type)	75
Battery capacity (V-Ah)	24V 100Ah
Open Type-Dimension (LWH) (mm)	26009001570
Open Type-Weight (kg)	1950
Soundproof Type- Dimension (LWH) (mm)	340014002150
Soundproof Type-Weight (kg)	4750
Fuel Tank Capacity(L)	600
Continuous Running Time(hr.)	8

Engine specifications:

1.Main features:

Six-cylinder, water-cooled, in-line diesel engine
Efficient fuel system for max power output and durability
Large-capacity air cleaner
Cost effective, fuel efficient and reliable performance
Functional engine with compact structure
Excellent after-sales service and sufficient spare parts supplying
Easy installation and ready access for routine maintenance

2.Technical data

Model 1306C-E87TAG6

Engine brand	Perkins
Output Power (kw)	239
Cylinder No. & Config.	6, in-line
Combustion System	direct injection
Compression Ratio	16.9:1
Displacement (L)	8.7
Bore X Stroke (mm)	116.6*135.9
Engine Speed (r/min)	1500
Speed Governing	Electronic
Starting System	24V DC Electric
Filter System	Dry oil filter/Fuel filter/Oil filter
Cooling system	Water-cooled
Coolant capacity (L)	37.2
Fuel Consump. (g/kw·h)	188
Oil Capacity (L)	26.5

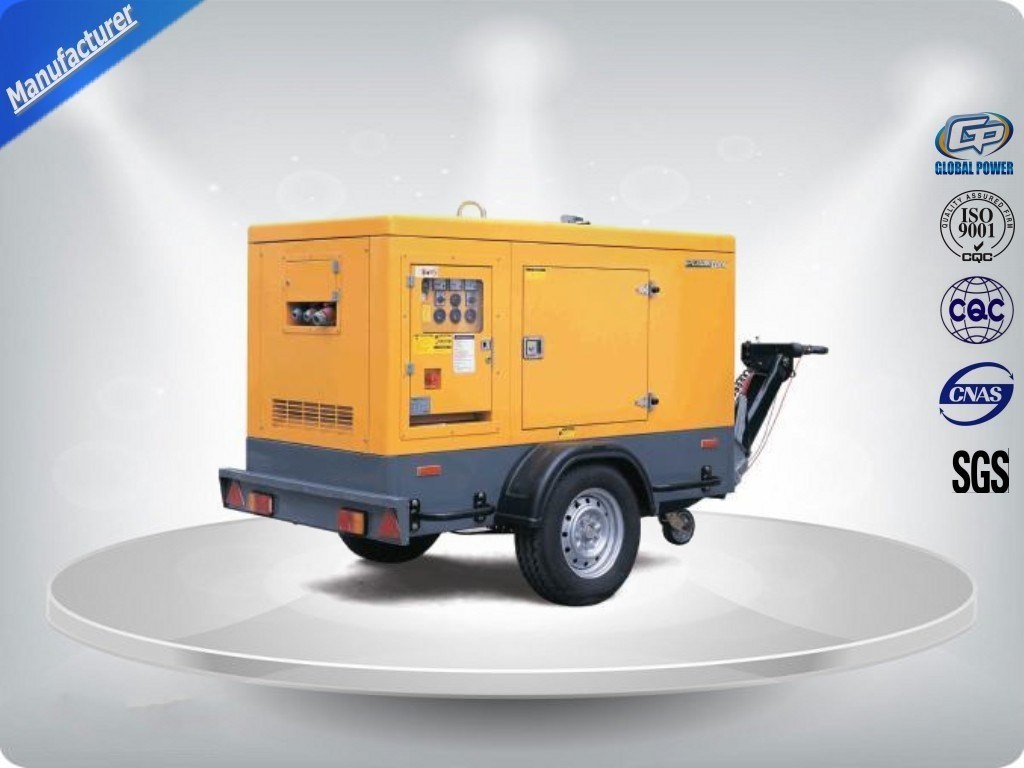

Product Picture:

Brushless Portable Mobile Generators Trailer Mounted Class H Insulation

Features and benefits:

Tightly structure, excellent design and craft
Excellent cooling system, reliable performance under the harshest conditions (ambient temperature up to 40℃ and altitudes up to 1000m)
Self-diagnostic capability simplifies troubleshooting
LCD display shows system status and setup information
Automatic voltage regulator protects your sensitive electronics from harmonic distortion and unstable power quality
Soundproof type: Very quite running–75dB(A)at 23ft(7m) at normal load.
Enclosed muffler for added quietness
Service and maintenance accessible through easy-latch side service door
