شرکت فناوری قدرت جهانی وو شی، با مسئولیت محدود
کاربر اول، صداقت محور؛ ایجاد برند GP با کیفیت، کسب اعتبار با خدمات.
جزئیات محصول:
پرداخت:
|
| برند موتور:: | پرکینز | مدل موتور: | 1103a-33g |
|---|---|---|---|
| ولتاژ نامی (V): | 400/230 | ظرفیت مخزن سوخت (L): | 70 |
| نوع عایق صدا - ابعاد (L*W*H) (mm): | 2100*950*1400 | عایق صدا نوع وزن (کیلوگرم): | 1800 |
| نام تجاری ماژول کنترل: | Comap، SmartGen، DeepSea | کنترلر Genset: | HGM410 |
| بسته: | کیس فوم یا تخته سه لا پلاستیکی | خجالتی: | قابل سفارشی سازی است |
| برجسته کردن: | Trailer Genset, mobile generators,mobile generators |
||

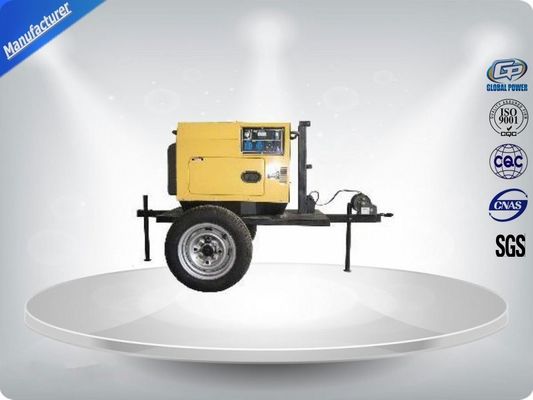

10-100Kva 30Kva Diesel Trailer Generator Easy Moving Powered By Perkins Engine
Trailer Feature:
Basic Specification:
1. Engine brand, Perkins.
2. Alternator brand, Marathon, Stanform, Engga...etc
3. Direct injection internal combustion engine
4. AC synchronous generator ( single bearing)
5. Cooling way, radiator with fan & water tank
6. Open type, closed type ( with sound proof canopy, trailer, container)
7. Silent / trailer diesel generator set, containerized diesel generator set, vechile mounted diesel genset.
8. Anti-vibration isolaters
9. Brushless 3 phase
10.Integral guel tank ( 8 hours)
11. sound proof, weather proof canopy is optional ( both open type and closed type can be made)
12.50/60hz
13. Atomatic alarm system
14. Insulation, class H
Diesel Generator GPP24 (three phase)
|
Prime Power (kw/kva) |
24/30 |
|
Standby Power (kw/kva) |
26/33 |
|
Rated Voltage (V) |
400/230 |
|
Voltage Recovery Time |
≤1S |
|
Rated Current (A) |
43 |
|
Rated Frequency (Hz) |
50 |
|
Frequency Recovery Time |
≤5S |
|
Wave Distortion |
≤5%, sine wave |
|
Running Noise db(A)/7m(Silent type) |
75 |
|
Battery capacity (V-Ah) |
12V 100Ah |
|
Open Type-Dimension (L*W*H) (mm) |
1500*650*1080 |
|
Open Type-Weight (kg) |
750 |
|
Soundproof Type- Dimension (L*W*H) (mm) |
2100*950*1400 |
|
Soundproof Type-Weight (kg) |
1800 |
|
Fuel Tank Capacity(L) |
70 |
|
Continuous Running Time(hr.) |
8 |
Engine specifications:
Main features
Technical data
Model 1103A-33G
|
Engine brand |
Perkins |
|
Output Power (kw) |
31 |
|
Cylinder No. & Config. |
3, in-line |
|
Combustion System |
direct injection |
|
Compression Ratio |
19.25:1 |
|
Displacement (L) |
3.3 |
|
Bore X Stroke (mm) |
105*127 |
|
Engine Speed (r/min) |
1500 |
|
Speed Governing |
Electronic |
|
Starting System |
12V DC Electric |
|
Filter System |
Dry oil filter/Fuel filter/Oil filter |
|
Cooling system |
Water-cooled |
|
Coolant capacity (L) |
10.2 |
|
Fuel Consump. (g/kw·h) |
211.1 |
|
Oil Capacity (L) |
8.3 |

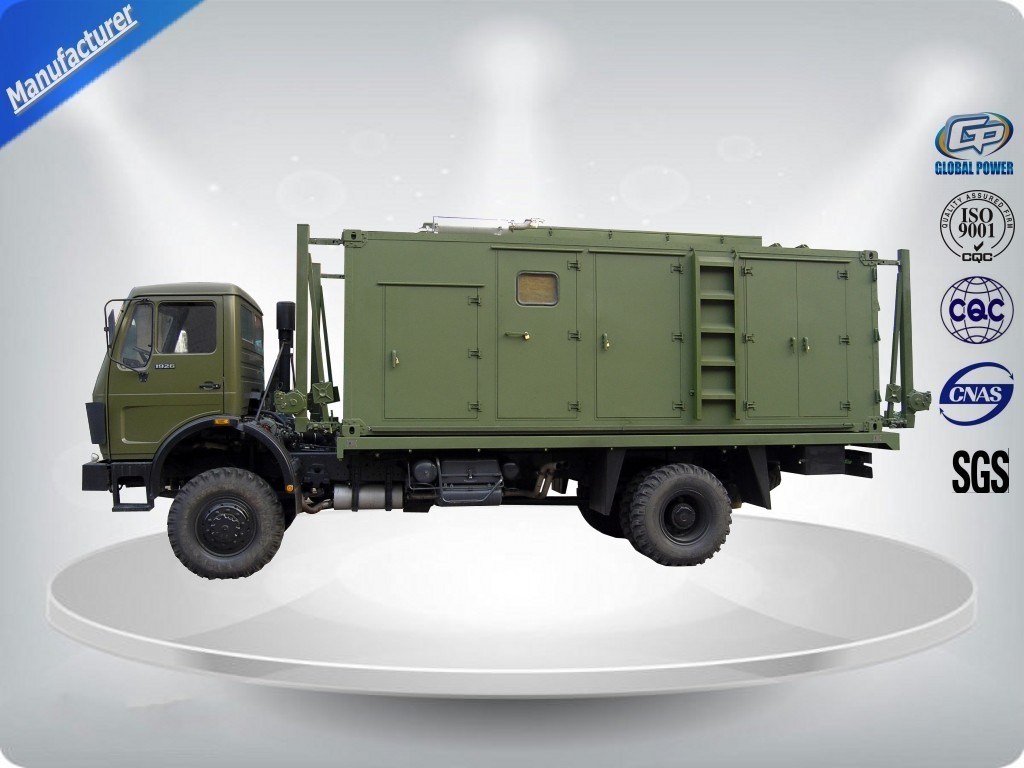

Product Picture:
Features and benefits
