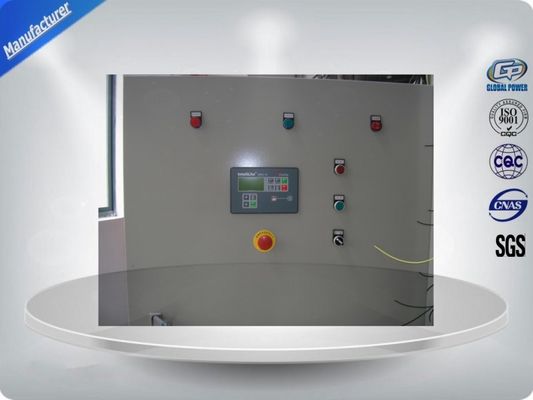

Smartgen / Deepsea Diesel Generator Controller Waterproof 50/60Hz

Operating Voltage

DC8. 0V to 35. 0V, Continuous Power Supply

Power Consumption

Standby, 12V-0.3W, 24V-0.4W

Working, 12V-1W, 24V-1.1W

Alternator voltage  Input

1P2L 15V AC ~ 360 V AC (ph-N)

Alternator Frequency

50/60Hz

Speed sensor voltage

1V to 24V (active value)

Speed sensor Frequency

Max. 10kHz

Max. accumulative running  time

99999.9 hours (it is 1/10 hour after decimal point, means changing/6 min.)

Start Relay Output

1Amp DC28V  DC B+ power on to output

Fuel Relay Output

1Amp DC28V  DC B+ power on to output

Stop Relay Output

1Amp DC28V  DC B+ power on to output

Idle Relay Output

1Amp DC28V  DC B+ power on to output

Configured Relay Output

1Amp DC28V  DC B+ power on to output

Switching value input port

Active when connected with B-

Overall dimensions

88mm x 76mm x 44mm

Panel cut off

78x66mm

Working conditions

Temperature, (-25~+70)ºC

Humidity, (20~90)% without condensation

Storage Condition

Temperature, (-30~+80)ºC

Protective Level

IP55, when waterproof rubber ring added between controller and its panel.

IP42, when waterproof rubber ring not have between controller and its panel.

Insulation Intensity

Object: among in input/output/power

Quote standard: IEC688-1992

Test way: AC1.5kV/1min 1mA leakage current

Weight

0.15kg
