جزئیات محصول:
پرداخت:
|
| محل مبدا:: | چین (سرزمین اصلی) | نام تجاری: | عمق دریا |
|---|---|---|---|
| فرکانس دینام: | 50 هرتز / 60 هرتز | شماره مدل:: | DSE7320 |
| فرکانس ورودی مغناطیسی:: | 10000 هرتز (حداکثر) | برش پانل:: | 220 میلیمتر × 160 میلیمتر (8.7 اینچ در 6.3 اینچ |
| ضمانت:: | 1 سال | ||
| برجسته کردن: | generator paralleling controller ,generator speed controller,generator speed controller |
||

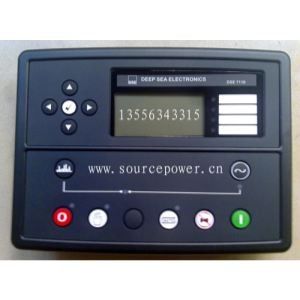

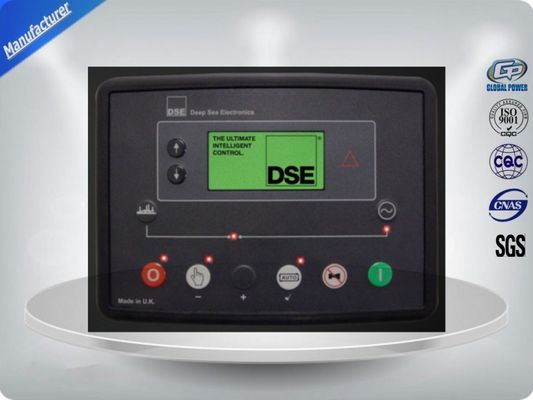

Brushless Generator Control Module 80 Kw Prime Power 8 - 35 Vdc Continuous
Specifications :
| Power Supply | 8 to 35 Vdc Continuous |
| Cranking Dropouts: | Able to survive 0 V for 50mS, providing supply was at least 10V before dropout and supply recovers to 5V without the Need for internal batteries. |
| Max Current | Operating 340 mA at 12 V, 160 mA at 24 V; Standby 160 mA at 12 V, 80 mA at 24 V 24V |
| Start Output: | 15 A DC at supply voltage |
| Fuel Output: | 15 A DC at supply voltage |
| Auxiliary Relay Outputs: | 2 A DC at supply voltage |
| Charge Fail / Excitation Range | 0 V to 35 V |
| Alternator Input Range: | 15 V - 333 V AC (L-N) |
| Alternator Input Frequency: | 3.5 Hz to 75 Hz |
| Mains Supply Input Range: | 15 V - 333 V AC (L-N) |
| Mains Supply Input Frequency: | 3.5 Hz to 75 Hz |
| Magnetic Pick-up Voltage Input Range: | +/- 0.5 V to 70 V |
| Magnetic Input Frequency: | 10,000 Hz (max) |
| Operating Temperature Range: | -30 to +70°C |
| Panel Cutout: | 220mm x 160mm ( 8.7” x 6.3” |
Key Features:
• Ultimate size to feature ratio
• Automatically transfers between mains (utility) and generator (DSE4520 only)
• Hours counter provides accurate information for monitoring and maintenance periods
• User-friendly set-up and button layout for ease of use
• Multiple parameters are monitored simultaneously which are clearly displayed on thelargest back-lit icon display inits class
• The module can be configured to suit a wide range of applications
• Uses DSE Configuration Suite PC Software for simplified configuration
• Compatible with a wide range of CAN engines
• Licence-free PC software
• IP65 rating (with optional gasket) offers increased resistance to water ingress
