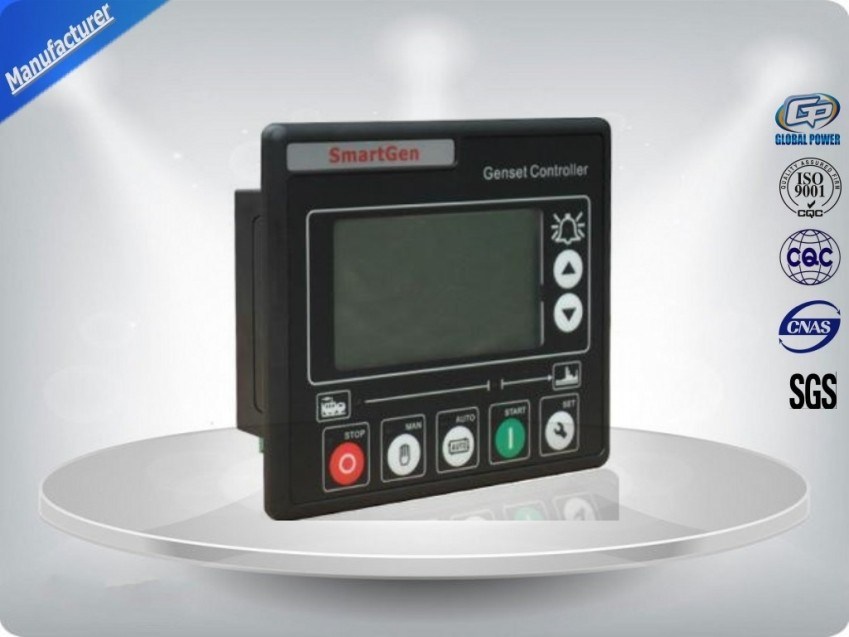

0.26Kg Diesel Generator Automatic smartgen Controller 5A Ct Secondary Current

Items

Contents

Working Voltage

DC8.0V to 35.0V, continuous

Power Consumption

<3W(Standby mode: ≤2W)

AC voltage Input:

3 Phase 4 Wire

2 Phase 3 Wire

Single phase 2 Wire

3 Phase 3 Wire

15V AC - 360 VAC (ph-N)

15V AC - 360 VAC (ph-N)

15V AC - 360 VAC (ph-N)

30V AC - 620 VAC (ph-ph)

Alternator Frequency

50Hz/60 Hz

Speed Sensor Voltage

1.0V to 24V (effective value)

Speed Sensor Frequency

10,000 Hz (max)

Start Relay Output

5ADC28V power supply

Programmable Relay Output 1

5ADC28V power supply

Programmable Relay Output 2

5ADC28V power supply

Programmable Relay Output 3

5ADC28V power supply

Programmable Relay Output 4

5A AC250V voltage-free output

Programmable Relay Output 5

5A AC250V voltage-free output

Overall Dimensions

130mm x 112mm x 39mm

Panel Cutout

110mm x 90mm

CT Secondary Current

5A (rated )

Working Condition

Temperature: (-25~70)ºC; Humidity: (20~93)%RH

Storage Condition

Temperature: (-30~+80)ºC

Protection Level

IP55: when waterproof rubber gasket added between controller and its panel.

IP42: when waterproof rubber gasket not added between controller and its panel.

Insulation Intensity

Object: among in input/output/power

Quote standard: IEC688-1992

Test way: AC1.5 kV/1min 3mA leakage current

Weight

0.26kg
