جزئیات محصول:
پرداخت:
|
| شرایط استفاده: | کاربری زمین | بار تست: | 25٪، 50٪، 75٪، 100٪، 110٪ |
|---|---|---|---|
| نوع کاربری اراضی واحد: | مشترک | حالت تحریک:: | محرک چرخشی AC |
| قدرت نامی: | 90kw / 113kva | برند موتور چین: | Xichai، KOFO، Weichai، Vman، Yangdong.Isuzu. |
| نام تجاری آلترناتور: | استمفورد، مک آلته، فارادی، قدرت جهانی | نوع جنست: | باز، بی صدا، تریلر موبایل.. |
| نوع خروجی: | AC، سه فاز | جنست رنگ: | سفارشی |
| برجسته کردن: | Emergency Generator Set, power generating sets,power generating sets |
||

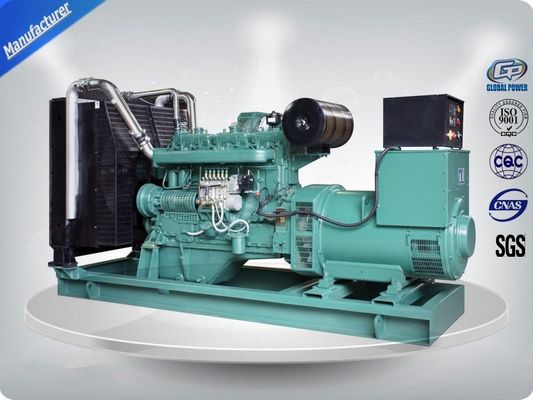

125Kva 3 Phase Electric Power Diesel Generator Set Support AC Rotating Exciter
AMF control module, Common steel base frame, Damper, Exhaust silencer, Flexible pipe, Battery connecting wires, Operation manual and document.3000kva generator
Optional Accessory
Circuit breaker, Starting Battery, Engine coolant and oil heater, Alternator space heater, Cooling for heat exchanger, Control system with RS232/485 communication interface, Battery charger by main supply, Fuel-water separator, Daily fuel tank, ATS & paralleling system, Soundproof Canopy and Moving Trailer.3000kva generator
Testing Items of Global Power's Genset:
1) Parts fault testing
2) Fue tank pressure testing
3) Bolt tightening torque testing
4) Painting thickness testing
5) Voltage bearing and insultion testing
6) Noise testing
7) Loading testing: All qualified generator sets are subjected to a comprehensive performance test which inclides 0% load, 25% load, 50% load, 75% load, 100% load and 110% load and to check, verify that all control systems, alarm and shut-own protection.
Perkins Model List:
Technical Specifications:
|
Genset |
Voltage Recovery Time |
≤1S |
|
|
Rated Frequency (Hz) |
50 |
||
|
Frequency Recovery Time |
≤5S |
||
|
Running Noise db(A)/7m(Silent type) |
75 |
||
|
Battery capacity (V-Ah) |
12V 100Ah |
||
|
Engine |
Cylinder No. & Config. |
in-line |
|
|
Combustion System |
direct injection |
||
|
Engine Speed (r/min) |
1500 |
||
|
Speed Governing |
Mechanical / Electronic |
||
|
Starting System |
24V DC Electric |
||
|
Filter System |
Dry oil filter/Fuel filter/Oil filter |
||
|
Cooling system |
Water-cooled |
||
|
Alternator |
Alternator brand |
Stamford, Mecc-alte,Faraday… |
|
|
Excitation System |
Brushless, self-exciting |
||
|
Voltage Regulation Mode |
AVR |
||
|
Connection Type |
3phase,4wires,”Y” connection |
||
|
Pole No. |
4 |
||
|
Rotation Speed (r/min) |
1500 |
||
|
Temperature Rise (℃) |
125 |
||
|
Insulation class |
H |
||
|
Voltage Regulation (0 load) |
≥95%～105% |
||
|
Protection Grade |
IP23 |
||
Control system
l Using microprocessor as a core, graphics LCD with big screen and backlight, key touch for operation
l Security password-protected programming levels
l All parameters use digital modulation, with higher reliability and stability
Built-in speed/frequency detecting units can accurately judge the states such as crank success and over speed
l Power supply range is wide, accommodating to different starting battery voltage environment
l Built-in watch dog can never be dead halt, ensuring smooth program execution
l Modular configuration design, inserted type connection terminals, flush type installation, compact structure, easy installation
Company Profile:
Wuxi Global Power Technology Co., Ltd is located in national Hi-tech Nanchang district, Wuxi city, Jiangsu, China, which is famous as the ‘source of power’. Our company is a key-enterprise of being engaged in research, development, manufacture and exportation of energy-saving and environment-friendly generating sets, related parts and supporting equipment.
We mainly produced “Global Power” brand three-phase brushless synchronous alternators and many kinds of diesel generator sets, such as open generator, silent/soundproof generator, outdoor power plant, containerized gensets, trailer gensets and equipments of construction machinery like mobile light tower, forklift, air-compressor and so on.
Package:
Global Power advantages:
1.Inspection
1) Each engine shall be tested at manufacturer’s workshop to certify the engine output according to present standard and fuel consumption in accordance with the site operating condition specified by purchaser on the specification datasheet.
2) All relevant information drawings pertinent to the testing and test procedure shall be transmitted to the purchaser in advance of the test date notification.
3) All accompanied documents are corresponding to the actual situation of generators, including the Qualified Certificate, Parameters and the Performance Index.
2.Guarantee
1) Guarantee Period: One year or 1000 running hours whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.
Our Service:
1. If you are interested in our products we sincerely invite you to take a visit of our factory when you are in China. We can drive to pick you up and visit our factory.
2. Suggest the best choice or referential suggestion based on customers’ information. Answer all questions about the product from customer.
3. Build customers’ profiles, follow-up service, make regular calls on customers.
