شرکت فناوری قدرت جهانی وو شی، با مسئولیت محدود
کاربر اول، صداقت محور؛ ایجاد برند GP با کیفیت، کسب اعتبار با خدمات.
جزئیات محصول:
پرداخت:
|
| برند موتور:: | پرکینز | توان اولیه (کیلووات بر کیلووات): | 21/26 |
|---|---|---|---|
| برند آلترناتور:: | استمفورد / میکالت / کپی استمفورد | مدل موتور:: | 404D-22TG |
| فرکانس (هرتز): | 50 | نوع ژنراتور:: | ضد صدا |
| نام تجاری ماژول کنترل: | Comap، SmartGen، DeepSea | کنترلر Genset: | HGM410 |
| بسته: | کیس فوم یا تخته سه لا پلاستیکی | خجالتی: | قابل سفارشی سازی است |
| برجسته کردن: | industrial diesel generators,Industrial Genset,Industrial Genset |
||
Open Three Phase Industrial Generator Set Silent With 12V DC Electric Starting System
Basic Specification:
1. Engine brand, Perkins.
2. Alternator brand, Marathon, Stanform, Engga...etc
3. Direct injection internal combustion engine
4. AC synchronous generator ( single bearing)
5. Cooling way, radiator with fan & water tank
6. Open type, closed type ( with sound proof canopy, trailer, container)
7. Silent / trailer diesel generator set, containerized diesel generator set, vechile mounted diesel generator set
8. Anti-vibration isolaters
9. Brushless 3 phase
10.Integral guel tank ( 8 hours)
11. sound proof, weather proof canopy is optional ( both open type and closed type can be made)
12.50/60hz
13. Atomatic alarm system
14. Insulation, class H
Diesel Generator GPC280 (three phase)
|
Prime Power (kw/kva) |
21 / 26 |
|
Standby Power (kw/kva) |
23 / 29 |
|
Rated Voltage (V) |
400 / 230 |
|
Voltage Recovery Time |
≤1S |
|
Rated Frequency (Hz) |
50 |
|
Frequency Recovery Time |
≤5S |
|
Wave Distortion |
≤5%, sine wave |
|
Running Noise db(A)/7m(Silent type) |
75 |
|
Battery capacity (V-Ah) |
12V 100Ah |
Engine specifications
Engine
Main features:
l Six-cylinder, water-cooled, in-line diesel engine
l Efficient fuel system for max power output and durability
l Large-capacity air cleaner
l Cost effective, fuel efficient and reliable performance
l Functional engine with compact structure
l Excellent after-sales service and sufficient spare parts supplying
l Easy installation and ready access for routine maintenance
Technical data
Model 404D-22TG
|
Engine brand |
Perkins |
|
Output Power (kw) |
27.7 |
|
Cylinder No. & Config. |
4, in-line |
|
Combustion System |
Indirect injection |
|
Compression Ratio |
23.3:1 |
|
Displacement (L) |
2.216 |
|
Bore X Stroke (mm) |
84*100 |
|
Engine Speed (r/min) |
1500 |
|
Speed Governing |
Electronic |
|
Starting System |
12V DC Electric |
|
Filter System |
Dry oil filter/Fuel filter/Oil filter |
|
Cooling system |
Water-cooled |
|
Coolant capacity (L) |
9.3 |
|
Fuel Consump. (g/kw·h) |
246 |
|
Oil Capacity (L) |
10.6 |

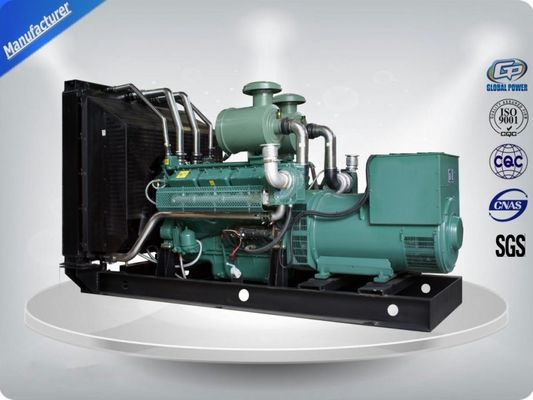

Product Picture:
Features and benefits
l Tightly structure, excellent design and craft
l Excellent cooling system, reliable performance under the harshest conditions (ambient temperature up to 40℃ and altitudes up to 1000m)
l Self-diagnostic capability simplifies troubleshooting
l LCD display shows system status and setup information
l Automatic voltage regulator protects your sensitive electronics from harmonic distortion and unstable power quality
l Soundproof type: Very quite running–75dB(A)at 23ft(7m) at normal load.
l Enclosed muffler for added quietness
l Service and maintenance accessible through easy-latch side service door
if you have interest , just contact us to get the price from our factory !
