جزئیات محصول:
پرداخت:
|
| قدرت نخست: | 120KW / 150KVA | قدرت آماده به کار: | 132KW / 165 KVA |
|---|---|---|---|
| موتور: | پرکینز 1106A-70TAG2 | متناوب: | استمفورد UCI274F |
| سرعت موتور: | 1500 دور در دقیقه | ولتاژ نامی: | 400 ولت / 230 ولت |
| صفحه کنترل: | HGM410 | رنگ: | طبق نیاز مشتری |
| برجسته کردن: | Emergency Generator Set,power generating sets,power generating sets |
||

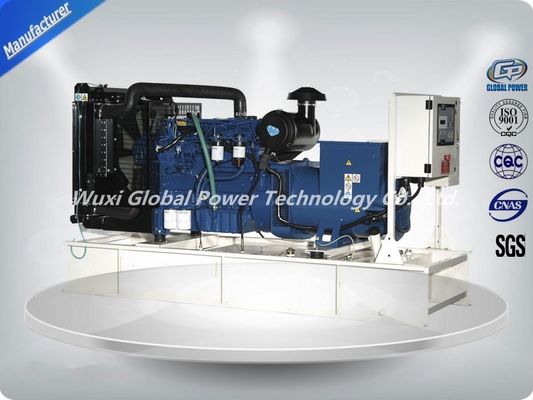

150 KVA 1500 / 1800 RPM 400 V Diesel Engine Generator , Perkins Diesel Generators Open Type
Applications:
1. Commercial and industrial facilities
2. Greenhouses
3. Utilities
4. Agriculture and food processing
5. Landfills
6. Wastewater treatment plants
etc.
| Generator Set Specification GPP120 | |
| Type | Open type |
| Prime power | 120 kw / 150 kva |
| Rated voltage | 400 V /230 V |
|
Rated Frequency (Hz) |
50 |
|
Battery capacity (V-Ah) |
12V 100Ah |
|
Dimension (L*W*H) (mm) |
2377*780*1350 |
|
Weight (kg) |
1465 |

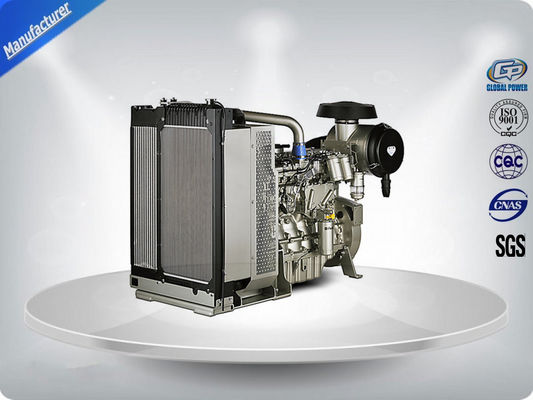

| Engine basic parameters | |
| Model | 1106A-70TAG2 |
| Continuous power/speed | 153 kw / 1500rpm |
|
Cylinder No. & Config |
6, in-line |
|
Compression Ratio |
16:1 |
|
Bore X Stroke (mm) |
105*135 |
| Alternator basic parameters | |
| Model | Stamford UCI274F |
| Rated Power (kw) | 128 |
|
Excitation System |
Brushless, self-excitating |
|
Pole No. |
4 |
|
Insulation class |
H |
| Protection class | IP21 |
| Total offer list | |
|
1) Diesel engine ( corrugated tube, silencer, starter relay, alternator AVR, USA Baldwin filters, stainless steel heat-shield cover,high quality sensors, tool case, free spare parts, catalogue & manual) 2) Alterantor (air breaker, AVR, instruction manual) 3) Alternator cabinet( DELEX brand voltage/current/HZ meter, Schneider breaker, Omron relay) 4) Base steel frame ( industrial shock absorbers, forklift work hole) 5) Free-maintenance battery (include connecting cables, switch)(lead-acid) 6) Strong woodcase packing. |
|
Configurations recommended as per different requirements (if required)

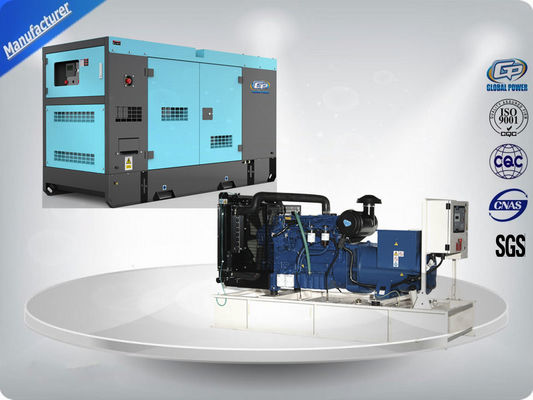

1) Silent shell:noise level 64dB at 7m, 4-8mm thickness base frame, 2-3 thickness shell body, industrial class soundproof cotton, smaller shake, smaller noise!
2) AMF+ATS system: auto-start and supply electricity when mains failure within 3 s , or directly transport electricity to the mains.
3) Parallel system: realize auto-parallel, auto load distribution, auto stop when load released. The cabinets are connected by 100% copper busbar.
4) Trailer: pull the generator set to anywhere required, suitable for wildness / construction places etc. With front steering system, big fuel tank, hand brake, plate-spring damping, brand new tires etc.
5) Controller: display all the running parameters of alternator & engine, provide related protection for them, realize the remote control etc.
Shipping:
Dispatch will be arranged within 30 days once your payment is verified. Package will be shipped from Shanghai Port, reaching most of the countries all over the world. Please be advised that international delivery highly depends on destination, local customs, post service and other factors.
